What Are Tungsten Carbide Tips Made Of?

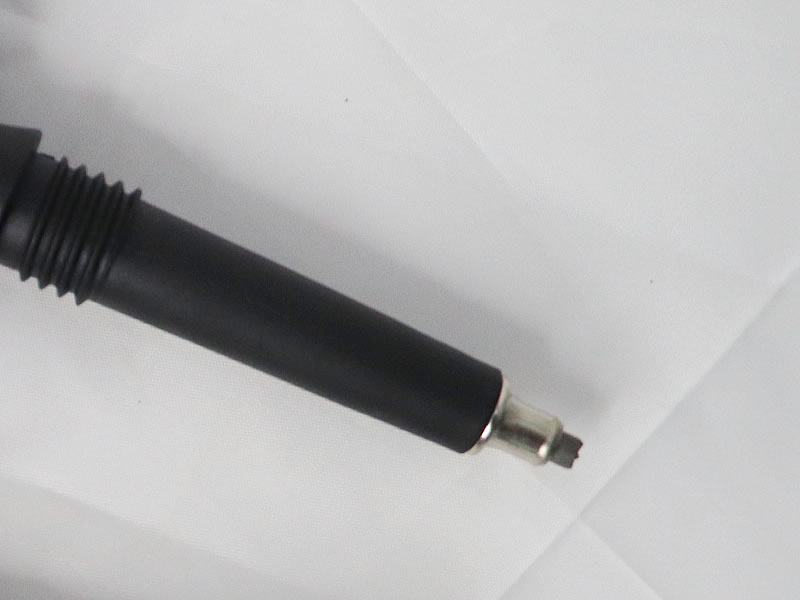

If you own a quality pair of walking poles, you've likely noticed the hard, sharp, metallic point at the end. This is the tungsten carbide tip, a small but critical component that is the workhorse of your trekking pole's traction system. But what exactly is this material that boasts such legendary durability and grip? The answer lies in a sophisticated composite material engineered for extreme hardness and wear resistance.

It's Not Pure Tungsten: The Chemistry of a Super-Material

The name can be misleading. A tungsten carbide tip is not made of pure tungsten metal. Instead, it is a ceramic-metallic composite known as a cemented carbide. It is created by combining atoms of tungsten (a very hard, dense metal) with atoms of carbon in a high-temperature process.

This process forms a chemical compound called tungsten carbide (chemical formula: WC). In its pure form, tungsten carbide is a fine, gray powder that is incredibly hard—ranking about 8.5 to 9 on the Mohs scale of mineral hardness, just below a diamond (which is a 10). For comparison, high-quality steel typically ranks around 4-4.5. However, a tip made purely from this powder would be too brittle for practical use.

The Binding Agent: Cobalt's Crucial Role

To transform this brittle powder into the durable tip we know, a binding agent is used. Typically, this is a cobalt powder. The tungsten carbide powder is mixed with the cobalt powder and then pressed into the desired shape—most commonly a sharp, conical point for trekking poles.

The "green" (un-hardened) tip is then subjected to a process called sintering. It is heated in a vacuum furnace at temperatures approaching 1,400°C (2,550°F). At this extreme heat, the cobalt melts without the tungsten carbide powder melting. The liquid cobalt flows around the hard tungsten carbide grains, binding them together into a solid, dense mass. The result is a material that combines the extreme hardness of tungsten carbide granules with the toughness and shock resistance provided by the cobalt metal matrix.

Why This Matters for Your Walking Poles

This specific manufacturing process gives tungsten carbide tips their unparalleled performance on the trail:

1. Superior Hardness and Wear Resistance: This is the primary benefit. The tip resists abrasion from rocks, concrete, and hard-packed earth far better than steel. While a standard steel tip would dull quickly, a tungsten carbide tip maintains its sharp, biting point for hundreds, even thousands, of miles.
2. Excellent Grip: The hardness allows the tip to penetrate and grip onto hard surfaces like rock and ice, providing reliable traction when you need it most. This is a key safety feature on slippery or uneven terrain.
3. Long-Term Value: Although poles with tungsten carbide tips may have a slightly higher upfront cost, their longevity makes them a more economical choice over time. You will rarely, if ever, need to replace them, unlike rubber pads or lower-quality steel tips.

A Note on Composition and Quality

The performance of a tungsten carbide tip can vary based on its specific composition. The ratio of tungsten carbide to cobalt is a key factor:

• A higher percentage of tungsten carbide (e.g., 94%) results in a harder, more wear-resistant tip, but it can be slightly more brittle.
• A higher percentage of cobalt (e.g., 6%) makes the tip tougher and more shock-resistant, but slightly less hard.

Quality manufacturers strike an optimal balance for the demands of trekking, ensuring the tip can withstand both constant abrasion and the occasional sharp impact.

In conclusion, the humble tungsten carbide tip is a masterpiece of material science. It is not a simple piece of metal, but a carefully engineered composite that delivers the perfect combination of hardness, toughness, and durability, making it an indispensable feature for any serious hiker's gear.
